Product Summary

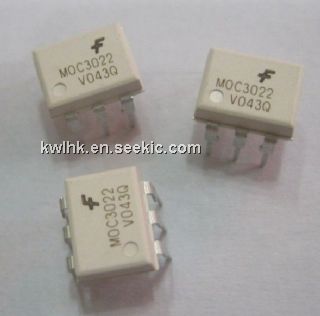

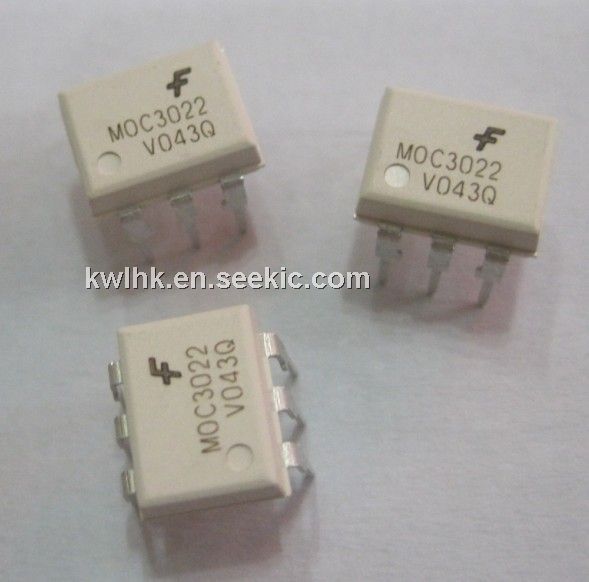

The MOC3022 is a 6-pin dip random-phase optoisolator with triac driver output. It consists of gallium arsenide infrared emitting diodes, optically coupled to a silicon bilateral switch. The MOC3022 is designed for applications requiring isolated triac triggering. Applications include: Solenoid/Valve Controls, Static ac Power Switch, Lamp Ballasts, Solid State Relays, Interfacing Microprocessors to 115 Vac Peripherals, Incandescent Lamp Dimmers, Motor Controls.
Parametrics
MOC3022 absolute maximum ratings: (1)Off–State Output Terminal Voltage VDRM: 400 Volts; (2)Peak Repetitive Surge Current(PW = 1 ms, 120 pps)ITSM: 1 A; (3)Total Power Dissipation @ TA = 25℃ PD: 300 mW; Derate above 25℃: 4mW/℃; (4)Isolation Surge Voltage(Peak ac Voltage, 60 Hz, 1 Second Duration)VISO: 7500 Vac(pk); (5)Total Power Dissipation @ TA = 25℃ PD: 330 mW; Derate above 25℃: 4.4 mW/℃; (6)Junction Temperature Range TJ: –40 to +100 ℃; (7)Ambient Operating Temperature Range TA: –40 to +85 ℃; (8)Storage Temperature Range Tstg: –40 to +150 ℃; (9)Soldering Temperature (10 s) TL: 260 ℃.
Features
MOC3022 electrical characteristics: (1)Reverse Leakage Current(VR = 3 V)IR: 0.05 to 100 μA; (2)Forward Voltage(IF = 10 mA)VF: 1.15 to 1.5 Volts; (3)Peak Blocking Current, Either Direction(Rated VDRM) IDRM: 10 to 100 nA; (4)Peak On–State Voltage, Either Direction(ITM = 100 mA Peak)VTM: 1.8 to 3 Volts; (5)Critical Rate of Rise of Off–State Voltage dv/dt: 10 V/μs.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MOC3022 |
Lite-On |
Triac & SCR Output Optocouplers Optocoupler TRIAC |
Data Sheet |
|
|
||||||||||||
|
MOC3022FR2M |
Fairchild Semiconductor |
Triac & SCR Output Optocouplers 6Pin 400V Optocoupl Rand Phs Triac Drvr |
Data Sheet |
Negotiable |
|
||||||||||||
|
MOC3022FR2VM |
Fairchild Semiconductor |
Triac & SCR Output Optocouplers 6Pin 400V Optocoupl Rand Phs Triac Drvr |
Data Sheet |
Negotiable |
|
||||||||||||
|
MOC3022FVM |
Fairchild Semiconductor |
Triac & SCR Output Optocouplers 6Pin 400V Optocoupl Rand Phs Triac Drvr |
Data Sheet |
Negotiable |
|
||||||||||||
|
MOC3022M |
Fairchild Semiconductor |
Triac & SCR Output Optocouplers DIP-6 NON-ZERO TRIAC |
Data Sheet |
|
|
||||||||||||
 |
MOC3022M_F132 |
Fairchild Semiconductor |
Triac & SCR Output Optocouplers Rand Phase Triac Out FSSP LED Die |
Data Sheet |
Negotiable |
|
||||||||||||
|
MOC3022M_Q |
Fairchild Semiconductor |
Triac & SCR Output Optocouplers DIP-6 NON-ZERO TRIAC |
Data Sheet |
Negotiable |
|
||||||||||||
|
MOC3022SR2M |
Fairchild Semiconductor |
Triac & SCR Output Optocouplers 6Pin 400V Optocoupl Rand Phs Triac Drvr |
Data Sheet |
|
|
||||||||||||
